05 Advanced SQL

Accessing SQL from a Programming Lang.

• 不是所有 query 都能表达为 SQL 语句
• 非声明式操作，例如交互，不能用 SQL 完成
• 2 approaches
  • dynamic SQL: 使用一些函数与 db 进行交流，运行时
    • JDBC, Python Database API, ODBC
  • embedded SQL: 将源码中的 SQL 语句在编译时特殊处理，转换为函数调用

JDBC

• app makes calls to
  • 与数据库服务器建立连接
  • 发送 SQL 命令
  • fetch tuples of result one-by-one into program variables
• JDBC
  • 支持 metadata 查询，例如查询有什么 relation，有什么 attr，attr 的类型

public static void JDBCexample(String dbid, String userid, String passwd)
{
    try (
        Connection conn = DriverManager.getConnection("jdbc:oracle:thin:@db.yale.edu:2000:univdb", userid, passwd);
        Statement stmt = conn.createStatement();
    ) {
        // do actual work
    }
    catch (SQLException sqle) {
        System.out.println("SQLException: " + sqle);
    }

    // update
    try {
        stme.executeUpdate(
            "insert into instructor values('12344', 'Kem', 'Physics', 80000)"
        );
    }
    catch (SQLException sqle) {
        System.out.println("Could not insert tuple. " + sqle);
    }

    // query
    ResultSet rest = stmt.executeQuery(
        "select dept_name, avg(salary)
        from instructor
        group by dept_name"
    );
    while(rset.next()) {
        System.out.println(rset.getString("dept_name") + "" + rset.getFloat(2));
    }
}

Prepared Statement

PreparedStatement pStmt = conn.prepareStatement("insert into instructor values(?, ?, ?, ?)");

pStmt.setString(1, "18930");
pStmt.setString(2, "Perry");
pStmt.setString(3, "Finance");
pStmt.setInt(4, 123445);
pStmt.executeUpdate();
pStmt.setString(1, "18931");
pStmt.executeUpdate();

• query 能够一次编译，多次使用不同的参数运行
• 如果需要用户输入，也很方便
• 能够避免 SQL 注入风险

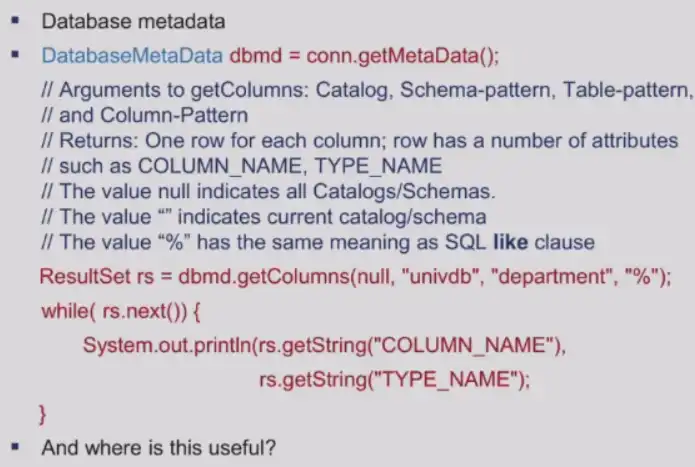

Metadata Features

Transaction Control

conn.setAutoCommit(false);
conn.commit();
conn.rollback();

SQLJ

embedded SQL in Java

#sql iterator deptInfoIter(String dept_name, int avgSal);
deptInfoIter = null;
#sql iter = { select dept_name, avg(salary) from instructor group by dept_name };
while (iter.next()) {
    String deptName = iter.dept_name();
    int avgSal = iter.avgSal();
    System.out.println(deptName + "" + avgSal);
}
iter.close();

• host language 宿主语言
• EXEC SQL 语句来标记嵌入 SQL EXEC SQL <embedded SQL statement>

Embedded SQL

EXEC-SQL connect to server user user-name using password;  // 连接到服务器

EXEC-SQL BEGIN DECLARE SECTION
    int credit_amount;
EXEC SQL END DECLARE SECTION  // 使用 :credit-amount 来引用 host lang 中的变量

EXEC-SQL
    DECLARE c CURSOR FOR
    SELECT ID, name
    FROM student
    WHERE tot_cred > :credit_amount;
END_EXEC

omitted

Functions and Procedures

Functions

CREATE FUNCTION deptCount (dept_name VARCHAR(20))
    RETURNS INTEGER
    BEGIN
    DECLARE d_count INTEGER;
        SELECT COUNT(*) INTO d_count
        FROM instructor
        WHERE instructor.dept_name = dept_name
    RETURN d_count;
END

SELECT dept_name, budget
FROM department
WHERE dept_count (dept_name) > 12;

• db 支持表函数，返回的是 relation

CREATE FUNCTION instructor_of (dept_name CHAR(20))
    RETURNS TABLE (
        ID VARCHAR(5),
        name VARCHAR(20),
        dept_name VARCHAR(20),
        salary NUMERIC(8, 2)
    )
    RETURN TABLE (
        SELECT ID, name, dept_name, salary
        FROM instructor
        WHERE instructor.dept_name = instructor_of.dept_name
    )

SELECT *
FROM TABLE (instructor_of('Music'))*

Procedures

CREATE PROCEDURE dept_count_proc (IN dept_name VARCHAR(20), OUT d_count INTEGER)
BEGIN
    SELECT COUNT(*) INTO d_count
    FROM instructor
    WHERE instructor.dept_name = dept_count_proc.dept_name
END

DECLARE d_count INTEGER;
CALL dept_count_proc('Physics', d_count);

Language Constructs

BEGIN ... END

WHILE <boolean_exp> DO
    ...
END WHILE

REPEAT
    ...
UNTIL <boolean_exp>
END REPEAT

FOR item AS
    <query>
DO
    ...
END FOR

IF <boolean_exp>
    THEN ...
ELSEIF <boolean_exp>
    THEN ...
ELSE ...
END IF

DECLARE n INTEGER DEFAULT 0;
FOR r AS
    SELECT budget FROM department
    WHERE dept_name = 'Music'
DO
    SET n = n + r.budget
END FOR
