04 Intermediate SQL

Join Expressions#

join types	join conditions
join (inner join)	`NATURAL`
left outer	`ON <predicate>`
right outer	`USING(A1, A2,...)`
full outer
定义了不匹配键的处理方式	定义了用于匹配的键

Join Conditions#

Natural#

相同的属性，只留下一个

SELECT name, course_id
FROM student, takes
WHERE student.ID = takes.ID;

SELECT name, course_id
FROM student NATURAL JOIN takes;

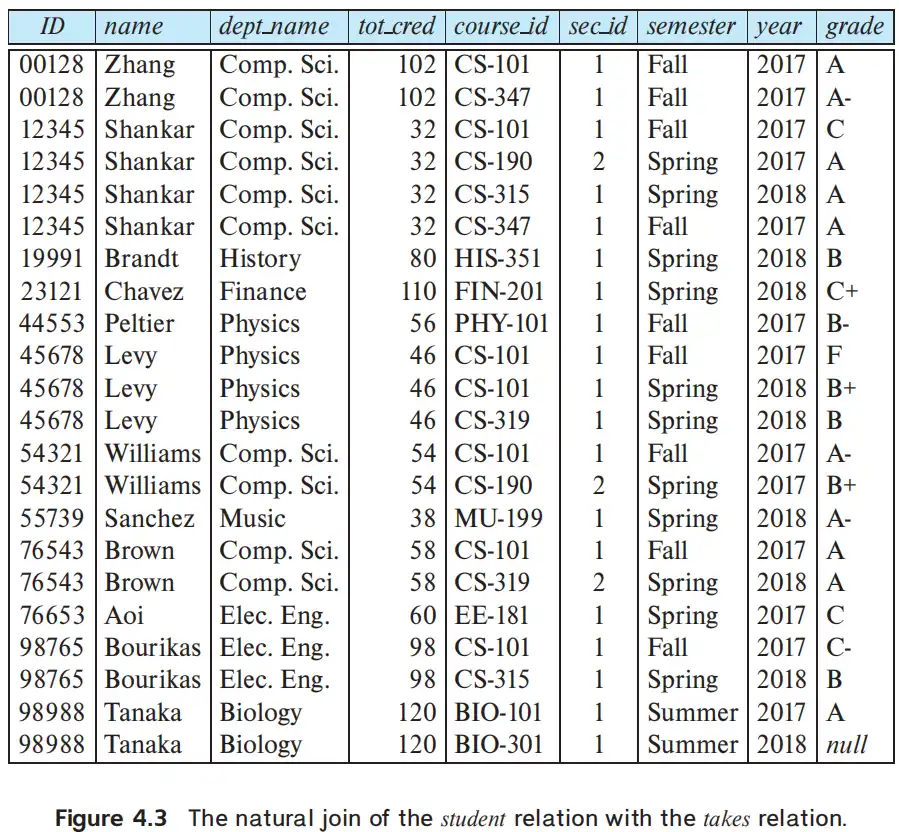

400

如上图，只保留了一列 ID 属性

Warning

使用 {sql}NATURAL JOIN 的话，会自动将命名相同的属性匹配，但是可能这些属性的含义并不一样 e.g. 学生的学院和学生上课的开课学院

使用 using 来声明连接属性
SELECT name, title
FROM (student NATURAL JOIN takes) join course USING (coutse_id);

Others#

ON 会保留多个属性
USING(A1, A2,...) 会将声明的同名属性合并

Join Types#

JOIN 默认使用 INNER JOIN，不会保留有 NULL 的 tuple

Outer Join#

Note

如果 A 中的一个元素无法在 B 中找到匹配，也保留并补充空值 e.g. 一个没有修任何课程的学生，也希望在 {sql}student JOIN takes 中

left outer join: 保留左边的全部信息
right outer join: 保留右边
full outer join: 保留两边

Views#

用于向部分用户仅展示部分信息 hide certain data from the view of certain users
Any relation that is not of the conceptual model but is made visible to a user as a virtual relation is called a view

Definition#

CREATE VIEW v AS
< query exp >;

view definition 和使用 query 创建新的 relation 不同
- view definition 导致了 the saving of an expression，存储了查询表达式

example
CREATE VIEW faculty AS
    SELECT ID, name, dept_name
    FROM instructor;

CREATE VIEW dept_total_salary(dept_name, total_salary) AS
    SELECT dept_name, SUM(salary)
    FROM instructor
    GROUP BY dept_name;

by using other views#

一个视图的定义可能依靠其他视图
v1 is said to depend directly on v2，如果 v2 出现在了 v1 的定义中
v1 is said to depend on v2，如果直接依赖、或者存在到 v2 的依赖路径
v 可以是 recursive 的，如果依赖自己定义

example
CREATE VIEW physics_fall_2017 AS
    SELECT course, course_id, sec_id, building, room_number
    FROM course, section
    WHERE course.course_id = section.course_id
        AND course.dept_name = 'Physics'
        AND section.semester = 'Fall'
        AND section.year = '2017';

CREATE VIEW physics_fall_2017_watson ON
    SELECT course_id, room_number
    FROM physics_fall_2017
    WHERE building = 'Waston';

Expansion#

CREATE VIEW physics_fall_2017_watson ON
    SELECT course_id, room_number
    FROM physics_fall_2017
    WHERE building = 'Waston';

# expand to:

CREATE VIEW physics_fall_2017_watson ON
    SELECT course_id, room_number
    FROM (
        SELECT course, course_id, sec_id, building, room_number
        FROM course, section
        WHERE course.course_id = section.course_id
            AND course.dept_name = 'Physics'
            AND section.semester = 'Fall'
            AND section.year = '2017'
    )
    WHERE building = 'Waston';

只要不是 recursive，总会得到展开结果

Materialized Views#

一些 DBMS 允许 view 能被物理存储
- 在定义时 copy
如果 relation 中的数据有更新，materialized view 需要维护

Update of a View#

多数 SQL 都只支持简单视图的更新
- FROM 只有一张表
- SELECT 只有字段名，没有表达式，aggregates 或者 DISTINCT
- 所有没有放在 SELECT 中的字段名允许 NULL
- 没有 GROUP BY 或者 HAVING 语句

examples#

example
INSERT INTO faculty VALUES ('30756', 'Green', 'Music');

faculty 是 instructor 的视图，没有插入 salary 字段，有两种解决方法

拒绝插入
插入 null

some updates cannot be translated uniquely
CREATE VIEW instructor_info AS
    SELECT ID, name, building
    FROM instructor, department
    WHERE instructor.dept_name = department.dept_name;

INSERT INTO instructor_info VALUES ('67890', 'White', 'Taylor');

如果 Taylor 有多个 department，是哪个？
如果 Taylor 没有 department 怎么办？

simple view outlier
CREATE VIEW history_instructors AS
    SELECT *
    FROM instructor
    WHERE dept_name = 'History';

INSERT INTO history_instructors VALUES ('124554', 'Brown', 'Biology', 100000);  # 无法插入

Index#

一张表上的 index 是一种数据结构，使得数据库系统能够快速查找一些类型的 tuple

```sql tilte="create index command" CREATE INDEX ON (attr);

CREATE INDEX stuID_index on student(ID);

SELECT * FROM student WHERE ID = '12345'; # 能直接使用已有的 index 来查询

# Transactions

- A **transaction** consists of a sequence of query and/or update statements and is a "unit" of work.
- transaction 一定以下面一种声明结束
    - **Commit work**: 提交 transaction 中的所有操作（永久化）
    - **Rollback work**: undone transaction 中的所有操作
- Atomic transaction: 只能完全执行或者 rollback

# Integrity Constraints

- `{sql}NOT NULL` 不允许字段为空
- `{sql}UNIQUE (A1, A2, ..., An)` 声明 `(A1, A2, ..., An)` 是一个 **super key**
    - 和主键不同，candidate keys 允许为 null
- `{sql}CHECK (P)`
    - `{sql}CHECK (semester in ('Fall', 'Winter', 'Spring', 'Summer')`
    - check 的条件可以非常复杂，可以嵌套 query

## Referential Integrity

- 保证一张表中出现的一些值能够对应到其他一些表上的一些值（foreign key）
    - `{sql}FOREIGN KEY (dept_name) REFERENCES department` 默认 ref 对应表的 primary key
    - `{sql}FOREIGN KEY (dept_name) REFERENCES department (dept_name)` 也可以自定义

```sql
CREATE TABLE person (
    ID CHAR(10),
    name CHAR(40),
    mother CHAR(10),
    father CHAR(10),
    PRIMARY KEY ID,
    FOREIGN KEY father REFERENCES person,
    FOREIGN KEY mother REFERENCES person
)

那么在插入的时候，要么先将 father, mother 设置为 null，要么取消 FOREIGN KEY 约束

Cascading Actions#

example
CREATE TABLE course (
    ...,
    dept_name VARCHAR(20),
    FOREIGN KEY (dept_name) REFERNECES department
        ON DELETE CASCADE
        ON UPDATE CASCADE
    ...
)

也可以用 {sql}ON DELETE SET NULL / ON UPDATE SET DEFAULT

Assertions#

表述 db 需要 always to satisfy 的条件
{sql}CREATE ASSERTION <assertion-name> CHECK (<predicate>);

Triggers#

系统根据数据库的修改自动执行的语句
ECA rule
- E: event
- C: condition
- A: action
introduced in SQL 1999

example
CREATE TRIGGER setnull_trigger BEFORE UPDATE OF takes ON grade
REFERENCING NEW ROW AS nrow
FOR EACH ROW
    WHEN (nrow.grade = '')
    BEGIN ATOMIC
        SET nrow.grade = NULL;
end;

event: BEFORE/AFTER INSERT/DELETE/UPDATE OF <relation>
- 可以细化到 attr ... ON <attr>
REFERENCING OLD/NEW ROW AS

trigger to maintain credits_earned value
CREATE TRIGGER credits_earned AFTER UPDATE OF takes ON (grade)
REFERENCING NEW ROW AS nrow
REFERENCING OLD ROW AS orow
FOR EACH ROW
WHEN nrow.grade <> 'F' AND nrow.grade IS NOT NULL
    AND (orow.grade = 'F' OR orow.grade IS NULL)
BEGIN ATOMIC
    UPDATE student
    SET tot_cred = tot_cred + (
        SELECT credits
        FROM course
        WHERE course.course_id = nrow.course_id
    )
    WHERE student.id = nrow.id;
END;

when not to use#

现在有更好的方法（materialized view）
可以封装方法，在更新的时候同时执行，而不是使用触发器
risk of unintended execution
- 从 backup 中加载数据
- 将更新传递到远程数据库
- tip: 执行这些操作时可以 disable 触发器

Data Types#

Built-in Data Types in SQL#

date: DATE '2005-7-27'
time: TIME '09:00:30', TIME '09:00:30.75'
timestamp: TIMESTAMP '2005-7-27 09:00:30.75'
interval: INTERVAL '1' DAY

Large-Object Types#

BLOB: binary large object
CLOB: character alrge object

example
book_review CLOB(10kB),
image BLOB(10MB),
movie BLOB(2GB)

query 返回的不是大文件本身，而是一个 pointer(定位器)

User-Defined Types#

example
CREATE TYPE Dollars AS NUMBERIC (12, 2) FINAL;

CREATE TABLE department (
    dept_name VARCHAR(20),
    building VARCHAR(15),
    budget Dollars
);

Domains#

和 types 相似，但是可以有 constraints

CREATE DOMAIN person_name CHAR(20) NOT NULL;

CREATE DOMAIN degree_level VARCHAR(10)
    CONSTRAINT degree_level_test
        CHECK (VALUE IN ('Bachelors', 'Masters', 'Doctorate'));

Authorization#

Grant#

GRANT <privilege_list> ON <relation or view> TO <user_list>

<user_list>
- a user-id
- PUBLIC 所有合法用户
- a role (more on this later)
给视图权限不意味着给依赖的 relation 的权限
给权限的人 (grantor) 一定有这个权限

Privileges#

select
insert
update
delete
all privileges

Revoke#

REVOKE <privilege_list> ON <relation or view> FORM <user_list>

如果一个用户的一个权限被不同用户赋予了两次，可能仍然会拥有这个权限
所有依赖于这个用户的权限的权限都会被 revoke 级联删除

Roles#

CREATE ROLE <name>
GRANT <role> TO <users>

CREATE ROLE dean;
GRANT instructor TO dean;
GRANT dean TO Satoshi;

Authorization on Views#

CREATE VIEW geo_instructor AS
(
    SELECT *
    FROM instructor
    WHERE dept_name = 'Geology'
);

GRANT SELECT ON geo_instructor TO geo_staff;

view creator 需要有 instructor 的 SELECT 权限才能创建 view
geo_staff 可以没有 instructor 的任何权限？

Other Features#

References 权限#

有了才能去另一个 relation 引用 Foreign key
{sql}GRANT REFERENCE (dept_name) ON department TO Mariano;

Transfer of privileges#

example
GRANT SELECT ON department TO Amit WITH GRANT OPTION;
REVOKE SELECT ON department FROM Amit, Satoshi CASCADE;
REVOKE SELECT ON department FROM Amit, Satoshi RESTRICT;
