Ch.09 Graph Algorithms

1 Definitions#

\(G(V,E)\)
- G: graph
- V: Vertex
- E: Edge
Direction 有向图 (digraph) 或无向图
- 有向图 head->tail
Restrictions
- Selfloop is illegal 不存在自环
- Multigraph is not considered 不存在重合的边
Complete graph：完全图，所有点之间都有边
- 有向或无向不同，有向是两倍
adjacent
- digraph 有 adjacent to/from
  - v_i -> v_j
  - v_i is adjacent to v_j, to 就是向右的箭头
  - v_j is adjacent from v_i, from 就是向左的箭头
Subgraph
- 顶点和边都是子集
Path
- \(v_p\) 到 \(v_q\) 的一系列边
- Length of path: number of edges on the path
- Simple path: 经过的节点不重复
- Cycle: \(v_p=v_q\) 的 simple path，绕一圈
- Connectness: \(v_p\) 和 \(v_q\) 之间存在路径
- Connected graph: 任意顶点之间连通
  - 对于无向图，只要只有一个 component，那么就连通
  - 或表述为，只要每两个不同的顶点之间是连通的
Component of an undirected G: 最大的连通子图
Tree: 连通的没有环的图 a graph that is connected and acyclic
DAG: 有向无环图
- 有先后顺序的神经网络算法
Strongly Connected DG: 强连通有向图
- 任意两个顶点之间都有一条有向路径
- Weakly Connected DAG: 不是强连通（不全有有向路径），但是存在无向路径
- Strongly connected component: 最大强连通子图
Degree(v): 一个顶点，存在 Indegree and Outdegree
- degree = indegree + outdegree
- \(e = \sum d_i / 2\)

1.1 Representation of Graphs#

1.1.1 Adjacency Matrix 邻接矩阵#

adj_mat[i][j] = exist(i,j)? 1:0
- UDG: symmetric
  - array: \(adj\_mat[n(n+1)/2]=\{a_{11}, a_{12}, \dots , a_{1n}, a_{22}, \dots ,a_{2n}, \dots, a_{nn}\}\)
- DG: all needed
  - array: ...
- degree
  - UDG: \(degree(i)=\sum_{j=0}^{n-1}adj\_mat[i][j]=\sum_{j=0}^{n-1}adj\_mat[j][i]\)
  - DG: \(degree(i)=\sum_{j=0}^{n-1}adj\_mat[i][j]+\sum_{j=0}^{n-1}adj\_mat[j][i]\)
- con
  - 存储开销 \(O(N^2)\)，特别是对于 skewed graph
  - 判别是否连通，时间复杂度 \(O(N^w)\)

1.1.2 Adjacency Lists: Replace each row by a linked list#

对于每个 node，构建一个 linear list，里面放本节点的 adjacents
- order does not matter
Space complexity
- n nodes, e edges
- UDG: \(S = (n+2e)(ptrs)+2e(ints)\)
- DG: \(S=(n+e)(ptrs)+e(ints)\)
Degree(i) 就是对应 list 的长度
\(T(N)=O(n+e)\)

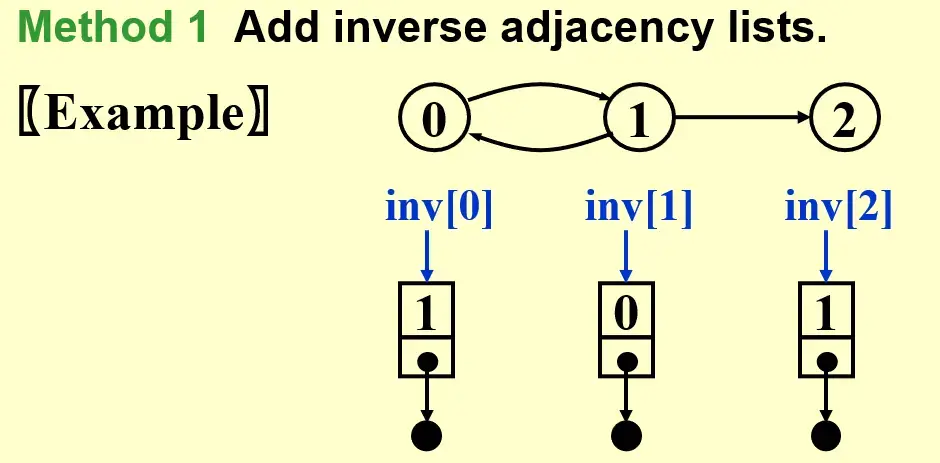

1.1.2.1 Inverse adjacency lists#

构建 inverse adjacency list 表示哪些节点指向了本节点

1.1.2.2 Multilist representation for `adj_mat[i][j]`#

Multilists回忆十字链表，上课问题，多少人上课，这门课有多少人选修问题 Ch.03 List#2.3.2 Multilists
- 每个节点有 head list, tail list

1.1.3 Adjacency Multilists#

使用 node 表示一条边
\(\{mark, v_1, v_2\}\)
构造方法
- 遍历所有 nodes graph[i]
  - 对于一个节点，找到第一个被引用的边 adj_mul[j]，从节点指向这个边
- 将边从前往后进行指向被引用的位置

__assets/Ch.09 Graph Algorithms/IMG-Ch.09 Graph Algorithms-20250125005612864.webp

缺点？
- 构造麻烦
- 存储开销一样，不算 mark 都有 \((n+2e)(ptrs)+2e(ints)\)
优势
- mark 标记节点的 weight
- mark 也可以表示边是否被 visit

1.1.4 Weighted Edges#

adj_mat[i][j]=weight
- 用的更多，因为有稀疏优化，实际使用矩阵多 tensor
adj_lists/multilists add a weight

2 Topological Sort 拓扑排序#

Example: 学习课程的先修限制 prerequisites
- 课程为结点，DG

2.1 AOV Network (Activities on vertex)#

predecessor
- immediate & indirect
successor
Partial order 偏序
- 先修关系可以传递，不可自反 transitive but irreflexive
AOV must be a DAG no cycle

2.2 Definition#

如果 i 为 j 的 predecessor，则 i 出现在 j 前面
每次选择没有 predecessor，即没有 indegree 的节点，并将它的后继的 indegree 减一（删去这个节点）
可能不是唯一的 not unique

2.3 Solution#

2.3.1 Solution 1#

使用一个 Counter 表示 visit 的节点数

void Topsort( Graph G )
{
    int Counter;
    Vertex V,W;
    for(Counter = 0; Counter < NumVertex; Counter++){
        V = FindNewVertexOfDegreeZero();
        if(V == NotAVertex){    // a cycle means no indegree 0
            Error("Graph has a cycle"); break;
        }
        TopNum[V] = Counter; // out put in a array with value as the order
        for(each W adjacent from V) indegree[W]--; // notice that "from"
    }
}

Time complexity \(O(|V|^2)\)
Improvement
- 解决 findnewdegreezero 太慢了，可以每次找到就放在一个 queue or stack 中，直接取就行，直到队列为空

2.3.2 Solution 2#

void Topsort( Graph G )
{
    Queue Q;
    int Counter = 0;
    Vertex V, W;
    Q = CreateQueue(NumVertex); MakeEmpty(Q);
    for( each vertex V )
        if(indegree[V] == 0) Enqueue(V, Q);
    while(!isEmpty(Q)){
        V = Dequeue(Q);
        TopNum[V] = ++Counter; // assign next
        for(each W adjacent from V)
            if(--indegree[W] == 0) Enqueue(W,Q);
    }
    if(Counter != NumVertex)
        Error("Graph has a cycle");
    disposeQueue(Q);
}

Time Complexity: \(O(|V|+|E|)\)
- worst case: 退化成 \(O(|V|^2)\)

Uniqueness of Topological Sequence

如果 DAG 中任意两个顶点之间都存在一条有向路径，A 到 B 或者 B 到 A，那么一定是唯一的

3 Shortest Path Algorithms#

cost function \(c(e)\) for \(e\in E(G)\), describing weighted path length

3.1 Single-Source Shortest-Path Problem#

对于图中给定的一个点，找到到其他所有点的最短路径
Negative Cost 过于复杂，可能导致无解，暂时不考虑

3.1.1 Unweighted Shortest Paths#

3.1.1.1 idea#

从起点出发，找到能到达的节点，就是距离为 1 的节点，visit
- Tree: Level-Order Traversal
- Breadth-first search(BFS) 广度搜索

3.1.1.2 Implementation#

Table[i].Dist ::= distance from s to v_i
Table[i].Known[i] ::= 1 if visited, 0 if not
Table[i].Path ::= for tracking the path 指向上一个顶点的指针，可以逆向找出路径

3.1.1.2.1 imp 1#

void Unweighted ( Table T )
{
    int CurrDist;
    Vertex B, W;
    for(CurrDist = 0; CurrDist < NumVertex; CurrDist++){
        for(each vertex V) if(!T[V].Known && T[V].Dist == CurrDist){  // add another |V|, too slow
            T[V].Known = ture;
            for(each W adjacent to V) if(T[W].Dist == Infinity){
                T[W].Dist = CurrDist + 1;
                T[W].Path = V;
            }
        }
    }
}

worst case, linear graph
\(T=O(|V|^2)\)

3.1.1.2.2 imp 2#

void Unweighted( Teble T )
{
    Queue Q;
    Vertex V, W;
    Q = CreateQueue(NumVertex); MakeEmpty(Q);
    Enqueue(S, Q);  // Enqueue the source vertex
    while(!IsEmpty(Q)){
        V = Dequeue(Q);
        T[V].Known = true;  // not really necessary
        for(each W adjacent to V) if(T[W].Dist == Infinity){  // infty means not searched yet
            T[W].Dist = T.[V].Dist + 1;
            T[W].Path = V;
            Enqueue(W, Q);
        }
    }
    DisposeQueue(Q);
}

所有顶点都进行的 queue 操作
所有的边都走了一遍
\(T=O(|V|+|E|)\)

3.1.2 Dijkstra's Algorithm(for weighted shortest paths)#

使用集合 S 表示所有已经找到了最短路径的 vertex 的集合
对于不在 S 内的 vertex，定义距离为 S 中的 vertex 到它距离的最小值
If the paths are generated in non-decreasing order, then
- the shortest path must go through ONLY \(v_i\in S\)
- 每次找到 S 距离最小的顶点，放入 S Greedy Method
- 如果 distance[u_1]<distance[u_2]，把 u_1 放入 S，随后的 distance[u_2] 可能会变

void Dijkstra( Table T )
{
    Vertex V, W;
    for(;;){ // O(|V|)
        V = smallest unknown distance vertex;
        if(V == NotAVertex) break;  // search done
        T[V].Known = ture;  // only visit the smallest dist vertex
        for(each W adjacent to V)  // update W
            if(!T[W].Known)
                if(T[V].Dist + Cvw < T[W].Dist){
                    Decrease(T[W].Dist to T[V].Dist + Cvw);
                    T[W].Path = V;
                }
    }
}

3.1.2.1 Implementation 1 直接遍历 Good if the graph is dense#

V = smallest unknown distance vertex, traverse the table \(O(|V|)\)
\(T=O(|V|^2+|E|)\) Good if the greph is dense

3.1.2.2 Implementation 2 Minheap Good if the graph is sparse#

V = smallest unknown distance vertex
- Keep distances in a priority queue and call DeleteMin \(O(\log |V|)\)
Decrease(T[W].Dist to T[V].Dist + Cvw)
- Method 1: DecreaseKey \(O(\log |V|)\)
  - \(T=O(|V|\log|V|+|E|\log|V|)=O(|E|\log|V|)\)
- Method 2: insert W with updated Dist into the priority queue
  - \(T=O(|E|\log |V|)\)
  - But require |E| DeleteMin with |E| space

3.1.2.3 Other improvements: Pairing heap (Ch.12) and Fibonacci heap (Ch.11)#

3.1.3 Graphs with Negative Edge Costs#

void  WeightedNegative( Table T )
{   /* T is initialized by Figure 9.30 on p.303 */
    Queue  Q;
    Vertex  V, W;
    Q = CreateQueue (NumVertex );  MakeEmpty( Q );
    Enqueue( S, Q ); /* Enqueue the source vertex */
    while ( !IsEmpty( Q ) ) { /*each vertex can dequeue at most |V| times*/
        V = Dequeue( Q );
        for ( each W adjacent to V )
            if ( T[ V ].Dist + Cvw < T[ W ].Dist ) { /* no longer once per edge */
                T[ W ].Dist = T[ V ].Dist + Cvw;
                T[ W ].Path = V;
                if ( W is not already in Q )
                    Enqueue( W, Q );
  } /* end-if update */
    } /* end-while */
    DisposeQueue( Q ); /* free memory */
}  /* negative-cost cycle will cause indefinite loop*/

\(T=O(|V|*|E|)\)
可以设置一个 treshold，如果一条边已经遍历超过这么多次，那么就认为是死循环，程序退出

3.1.4 Acyclic Graphs 无环图#

回忆 2 Topological Sort 拓扑排序里的无环图，AOV Network，\(T=O(|E|+|V|)\)

3.1.4.1 Application: AOE(Activity On Edge) Networks#

edge: activity
- weight: 任务持续的时间
- dummy edge: 任务存在先后关系，一个由另一个决定
vertex: status
- index of vertex
- EC: earlist completion time for this node
- LC: latest completion time for this node
CPM: Critical Path Method

__assets/Ch.09 Graph Algorithms/IMG-Ch.09 Graph Algorithms-20250125005642986.webp

EC：从起点开始往后计算，每次加上边，每个节点要取入度中最大的
LC：从终点往前计算，每次减去边，每个节点要取出度中最小的
Slack Time：松弛时间，这条边上完成任务之余可以 idle 的时间
Critical Path：所有的 slack time 都是 0，必须盯牢的任务线

3.2 All-Pairs Shortest Path Problem#

For all pairs of \(v_i\) and \(v_j\) \((i\ne j)\) , find the shortest path between.

3.2.1 Method 1 Use single-source algorithm for |V| times#

\(T=O(|V|^3)\)
works fast on sparse graph

3.2.2 Method 2 in Ch.10#

works faster on dense graphs

4 Network Flow Problems 网络流问题#

每条边都存在最大流量限制，有向图
从 source 到 sind 的最大流量问题

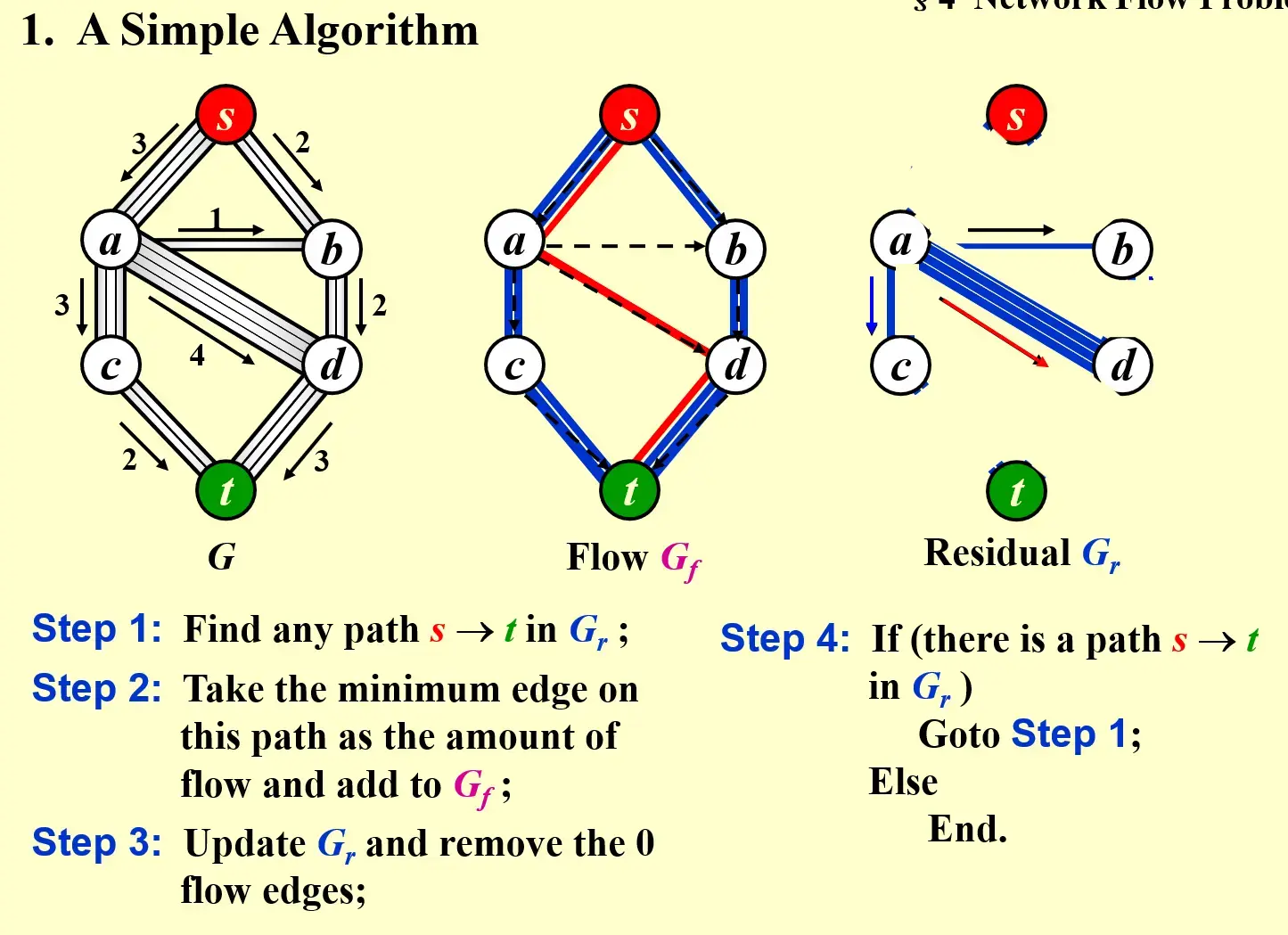

4.1 A Simple Algorithm#

根据原始的 graph，创建两个 graph
- Flow network \(G_f\)
- Residual network \(G_r\) 残差网络
Find any path from s to v in \(G_r\), called Augmenting path
Take the minimum edge on this path as the amount of flow and add to \(G_f\) 找到瓶颈，在 flow 里整条路线上更新到这个流量
并更新 residual
如果 residual 中仍然存在 path，继续 step 1；否则结束

__assets/Ch.09 Graph Algorithms/IMG-Ch.09 Graph Algorithms-20250125005655856.webp

4.1.1 问题 1#

如果使用 greedy method，可能提前导致路封死

4.2 A Solution - allow the algorithm to undo its decision#

更新 residual 时，加上反向的路径，有一个改错的机会
Proposition: 如果边是有理数，一定会找到最大的流量
Note: The algorithm works for G with cycles as well

4.3 Analysis ( If the capacities are all integers )#

An augmenting path can be found by an unweighied shortest path algorithm
- \(T=O(f*|E|)\), f is the maximum flow
Always choose the augmenting path that allows the largest increase in flow modify Dijkstra's algorithm
- \[T=T_{augmentation}*T_{find\space a\space path}=O(|E|\log cap_{max})*O(|E|\log |V|)=O(|E|^2\log |V|)\]
- if cap_max the maximum of capacity is a small integer
Always choose the augmenting path that has the least number of edges
- \[T=T_{augmentation}*T_{find\,a\,path}=O(|E|)*O(|E|*|V|)=O(|E|^2|V|)\]
- Note

5 Minimum Spanning Tree#

Definition: A spanning tree of graph G is a tree which consists of V(G) and a subset of E(G)

acyclic: the number of edges is |V|-1
minimun: for the total cost of edges is minimized 所有的权重和最小
spanning: it covers every vertex
A minimum spanning tree exists iff G is connected
Adding a non-tree edge to a spanning tree, we obtain a cycle

5.1 Greedy Method#

只使用 graph 里有的边
一定恰好使用 |V|-1 条边
使用的边不能形成循环

5.1.1 Prim's Algorithm - grow a tree#

Similiar to Dijkstra
每次选最小距离的

5.1.2 Kruskal's Algorithm - maintain a forest#

每次找距离最小的边
如果不形成 cycle，那么将树连接，删除这条边
如果形成 cycle，那么放弃这条边

void Kruskal ( Graph G )
{
    T = {};
    while ( T contains less than |V|-1 edges && E is not empty ) {
        choose a least cost edge(V, w) from E;   // deleteMin
        delete (v, w) from E;
        if((v, w) does not create a cycle in T)
            add (v, w) to T;   // union and find
    }
    if(T contains fewer than |V|-1 edges)
        Error("No spanning tree");
}

Time Complexity

初始化一个空的边集 \(O(1)\)
对边的权重进行排序 \(O(|E|\log |E|)\)
按照边的权重从小到大，进行并查集操作 \(O(|E|\log |V|)\)
- 如果采用 union-by-rank and path-compression，并查集能优化成 \(O(|E|\alpha(|E|, |V|))\)
- 这里的 \(\alpha\) 是反阿克曼函数，接近于常数
所以，总体的时间复杂度为 \(O(|E|\log |E|)\)

6 Applications of Depth-First Search#

a generalization of preorder traversal

void DFS ( Vertex V )
{
    visited[V] = true;
    for(each W adjacent to V)
        if(!visited[W])
            DFS(W);
}

\(T=O(|E|+|V|)\)
BFS: 每次找一层队列，while 循环 VS DFS: 每次先找到所有的递归

6.1 Undirected Graphs#

DFS 能够访问的所有节点，构成一个 component

void ListComponents( Graph G )
{
    for(each V in G)
        if(!visited[V]){
            DFS(V);
            printf("\n");
        }   // 每次访问打印节点index，每两个component之间换行
}

6.2 Biconnectivity#

__assets/Ch.09 Graph Algorithms/IMG-Ch.09 Graph Algorithms-20250125005741631.webp

Articulation Point: v is an articulation point if G' = deleteVertex(G, v) has at least 2 connected components 如果把这个节点删掉之后，图被分开了
Biconnected graph: G is a biconnected graph if G is connected and has no articulation points
A biconnected component is a maximal biconnected subgraph

__assets/Ch.09 Graph Algorithms/IMG-Ch.09 Graph Algorithms-20250125005749962.webp

6.2.1 Finding the biconnected components#

6.2.1.1 Use DFS to obtain a spanning tree of G#

spanning tree 重新按照 visit 顺序编号，得到 DFS number
Back edges 图中有但树中没有的边
Note: if u is an ancestor of v, then Num(u)<Num(v)

6.2.1.2 Find the articulation points in G#

The root is an articulation point iff it has at least 2 children
Any other vertex is an articulation point iff u has at least 1 child, and it is impossible to move down at least 1 step and then jump up to u's ancestor
- 至少有一个孩子，而且无法从后代中通过 back edge 回到祖先

6.2.1.3 \(Low(u)=min\{Num(u),min\{Low(w)|w\,is\,a\,child\,of\,u\},min\{Num(w)|(u,w)is\,a\,back\,edge\}\}\)#

是 自己的 number、children 中最小的 low number、自己 backedge 另一头中最小的 number 中最小的
计算 Low number
- 根节点 的 low number 是 0
- 先找所有 backedge 影响的 low number 因为 backedge 要找的是另一头的 number，已经全部已知
- DFS，每次返回本节点的 low number，每次比较自己的 number 和所有返回值，取最小的

%%Pseudo-code on p.327 and p.329%%

6.2.1.4 Therefore, u is an articulation point iff#

u is the root and has at least 2 children; or
u is not the root, and has at least 1 child such that \(Low(child)\ge Num(u)\)

6.3 Euler Circuits#

Euler tour: draw each line exactly once without lifting your pen from the paper 一笔画
Euler curcuit: draw each line exactly once without lifting your pen from the paper, AND finish at the startgin point
Propositions
- An Euler circuit is possible iff the graph is connected and each vertex has an even degree.
- An Euler tour is possible if there are exactly two vertices having odd degree. One must start at one of the odd-degree vertices.

6.3.1 algorithm#

__assets/Ch.09 Graph Algorithms/IMG-Ch.09 Graph Algorithms-20250125005819351.webp

the path should be maintained as a linked list
for each adjacency list, maintain a pointer to the last edge scanned
\(T=O(|E|+|V|)\)
Other algorithm: Hamilton Cycle

7 HW#

7.1 HW 8#

If a directed graph G=(V, E) is weakly connected, then there must be at least |V| edges in G. F
1. weak / strong connection
  1. 弱连接指的是存在一条路径，经过两点
  2. 强连接指的是，从 A 出发可以到 B，从 B 出发也可以到 A
2. 应该是 |V|-1，只要有 undirected path 就行
Given the adjacency list of a directed graph as shown by the figure. There is(are) __ strongly connected component(s).
1. 注意单个 vertex 也算是子图
2. 首先看哪些节点没有入或者没有出的，一定是单节点的子图

7.1.1 函数题：Is Topological Order#

7.1.1.1 idea 1#

遍历，建立 cntIndegree[num] 保存入度，记得初始化为
遍历输入，对于每个输入，如果对应 cntIndegree 是 0，则正确
- 并将 successor 的入度减一
如果入度还不是 0 的节点被 visit，则不正确，退出 false

7.1.1.1.1 test#

错误了，因为AdjV 里的节点编号也是从 0 开始的
修改之后就正确了

7.1.2 编程题：Hamiltonian Cycle#

7.1.2.1 idea 1#

建立图，adjmat/adjlist?
- 边界为 200 vertices，40000 个 int，预计占用 2^18 byte，空间足够，使用完全 adjmat
对于每一个输入 query
- 首先数量需要是 Nv+1 以上
- 然后首尾相同
- 其次需要包含所有数字
- 再次检查是否都可以连通

7.2 HW 9#

In a weighted undirected graph, if the length of the shortest path from b to a is 12, and there exists an edge of weight 2 between c and b, then the length of the shortest path from c to a must be no less than 10.
- T
- 如果 less than 10 的话，b to a 的最短就比 12 还小了

7.3 HW 10#

7.3.1 7-1 Universal Travel Sites#

就是最大网络流问题，但是加上了字符串，最好有字典，或者使用 python
思路
- 读图
  - 边里直接存节点名称，全部使用 strcmp，可以避免字典，这里用 python 来实现
  - 每个边同时存储 \(G_r, G_f\)
- unweighted 路径搜索，返回路径 直到搜不到 break
- 根据路径更新 \(G_r, G_f\)

7.3.2 Uniqueness of MST#

具有相同拓扑结构的 MST 就是相同的
- 任何一棵树都可以 reroot，但是边集不变
- 只要边集相同，就认为 MST 相同

如果能够建立最小生成树，如何判断是否唯一？

如果出现了相同权重的

7.3.2.1 idea#

对 edge 按照 weight 升序排列
使用并查集，路径压缩，遍历 edge
- 对于路径长度 d
  - 首先对所有的长度为 d 的路径进行分析，是否能够加入图中 是否成环，并进行记录
  - 然后进行逐个加入
最后看看如果存在可能加入 MST 但是实际上没有加入的路径，那么 MST 不唯一

7.3.2.1.1 注意#

需要使用快速排序，不然超时
实现过于麻烦

7.4 HW 11#

Apply DFS to a directed acyclic graph, and output the vertex before the end of each recursion. The output sequence will be: reversely topologically sorted
- 因为是在返回的时候打印的，而 DFS 的顺序是顺着拓扑排序深入的
- 注意有向无环图就是树，这就是树的 DFS
Use simple insertion sort to sort 10 numbers from non-decreasing to non-increasing, the possible numbers of comparisons and movements are:
- 一共有 45 个逆序对，所以交换的次数不会大于 45
- 选 D. 45, 44

7.4.1 函数题：Strongly Connected Components#

注意不是连通是 digraph 强连通，所以不是简单的 Undirected Graphs

7.4.1.1 Idea#

如何找到某个顶点所在的 SCC ?

首先，一个 SCC 的定义是，内部所有两个顶点之间都存在双向路径
- 那么 V 可以找到其他所有节点，其他所有节点也可以找到 V
- 满足上面这个条件，其他节点就可以相互找到，使用 V 作为跳板
所以得到了 SCC 的 充要条件

for all V in G
- if not visited
  - find the SCC it is in getStronglyConnectedComponent()
  - print(\n)
getSCC(Graph G, Vertex V)
- V 出发能找到的节点构成集合 From
- 能找到 V 的节点构成集合 To
- 取交集，加上 V 本身，就是 V 所在的最大 SCC
使用 adj_mat 利用 Warshall 算法可以更加方便地解决
- 对于 adj_mat 使用 Warshall 算法，得到目标矩阵
- 对于每个 unvisited 的顶点 V
  - 取矩阵里第 V 行和第 V 列的 AND
    - 这个结果就是 V 所在的 SCC
  - visit SCC 内所有的顶点 打印，标记
- \(O(N^3)\)
