Ch.07 Hashing

1 Interpolation Search#

Find Key from a sorted list f[l].key, f[l+1].key, ..., f[u].key

\[ \frac{f[u].key-f[l].key}{n}=\frac{key-f[l].key}{i-l}\quad \rightarrow i=l+\frac{(key-f[l].key)*n}{f[u].key-f[l].key} \]

如果是凹函数，i 在右半部分 l=i，继续找
如果是凸函数，i 在左半部分 u=i，继续找

2 General Idea#

Symbol Table (符号表) (==Dictonary) ::= {
}
- name = since
- attrribute = a list of meanings
- 一个 name 可以对应一个 list

2.1 Symbol Table ADT#

Objedcts: name-attribute pairs, names are unique
Operations

SybTab Create(TableSize);
Boolean Isin(symbtab, name);
Attribute Find(symtab, name);
SymTab Insert(symtab, namne, attr);
SymTab Delete(symtab, name);

2.2 Hash Tables#

__assets/Ch.07 Hashing/IMG-Ch.07 Hashing-20250125005044100.webp

loading density 是除以表的容量
identifier density 是除以 name 的个数
A collision occurs when we hash two nonidentical identifiers into the same bucket, \(f(i_1)=f(i_2), i_1\ne i_2\)
An overflow occurs when we hash a new identifier into a full bucket
- without overflow \(T_{search}=T_{insert}=T_{delete}=O(1)\)

3 Hash Function#

Note

\(f(x)\) must be easy to compute and minimizes the number of collisions
\(f(x)\) should be unbiased
- 平均下来取到每一个 bucket 的概率是一样的

\(f(x)=x\%{TableSize}\)
1. 如果 tablesize 是 10，x 结尾都是 0，就不好
2. 所以 tablesize should be prime number
\(f(x)=(\sum x[i])\%TableSize\) when x is a string
1. 如果 x 很短， \(\sum x[i]\) 相对于 tablesize 可能太小
\(f(x)=(x[0]+x[1]*27+x[2]*27^2)\%TableSize\)
1. 事实上三个字母出现的组合数没有这么大
\(f(x)=(\sum x[N-i-1]*32^i)\%TableSize\)

Index Hash3(const char* x, int TableSize)
{
    unsigned int HashVal = 0;
    while(*x) HashVal = (HashVal << 5) | *x++;
    return HashVal % TableSize
}

如果字符串太长，可能要选择 unique 的一部分

4 Separate Chaining#

-- Keep a list of all keys that hash to the same value - 将哈希表每个元素都变成一个链表的头节点

Attention

Separate Chaining 可以使用头插法，也就是往每个链表的头节点后插入，不需要放在链表的尾部，所以 \(T_{insert}=O(1)\)
但是在 Find 的时候，还是需要一个一个去找，worst case \(T_{find}=T_{delete}=O(N)\)

struct ListNode;
typedef struct LIstNode *Position;
struct HasTbl;
typedef struct HashTbl *HashTable;

struct ListNode {
    ElementType Element;
    Position Next;
};
typedef Position List;

struct HashTbl {
    int TableSize;
    List *TheLIsts;
};

4.1 Create an empty table#

HashTable InitializeTable( int TableSize )
{
    HashTable H;
    int i;
    if(TalbeSize < MinTableSize){
        Error("Table size too small"); return NULL;
    }
    H = malloc(sizeof(struct HashTbl));
    if(H == NULL) FatafError("Out of space!!!");
    H->TableSize = NextPrime(TableSize); // better be a prime
    H->TheLists = malloc(sizeof(List) * H->TableSize);
    if(H->TheLists == NULL) FatalError("Out of space!!!");
    for(i = 0; i < H->TableSize; i++){
        H->TheLists[i] == malloc(sizeof(struct ListNode)); // SLOW!!!!!!
        if(H->TheLists[i] == NULL) FatalError("Out of space!!!");
        else H->TheLists[i]->Next = NULL;
    }
    return H;
}

4.2 Find a key from a hash table#

Position Find( ElementType Key, HashTable H )
{
    Position P;
    List L;

    L = H->TheLists[Hash(Key, H->TableSize)];

    P = L->Next;
    whiel(P != NULL && P->Element != Key) P = P->Next;
    return P;
}

4.3 Insert a key into a hash table#

void Insert( ElementType Key, HashTable H )
{
    Position Pos, NewCell;
    List L;
    Pos = Find(Key, H);
    if(Pos == NULL){
        NewCell = malloc(sizeof(struct ListNode));
        if(NewCell == NULL) FatalError("Out of space!!!");
        else{
            L = H->TheLists[Hash(Key, H->TableSize)]; // Find 做过的哈希可以缓存起来
            NewCell->Next = L->Next;
            NewCell->Element = Key; // Probably need strcpy!
            L->Next = NewCell;
        }
    }
}

Tip: TableSize 应该和预期要存的 Key 的数量差不多

5 Open Addressing#

-- find another empty cell to solve collision (avoid pointers)

Algorithm: insert key into an array of hash table
{
    index = hash(key);
    initialize i = 0;
    while(collision at index){
        index = (hash(key) + f(i)) % TableSize; // f(0) = 0
        if(table is full) break;
        else i++;
    }
    if(table is full) ERROR("No space left");
    else insert Key at index;
}

Tip: 一般 \(\lambda < 0.5\)，才能尽量避免发生冲突

5.1 Linear Probing#

\(f(i)=i\) LInear function
\(p=\frac{1}{2}(1+\frac{1}{(1-\lambda)^2})\) for insertions and unsuccessful searches
\(p=\frac{1}{2}(1+\frac{1}{1-\lambda})\) for successful searches
尽管 \(p\) 可以很小，但是可能出现 worst case 很大的情况
- primary clustering

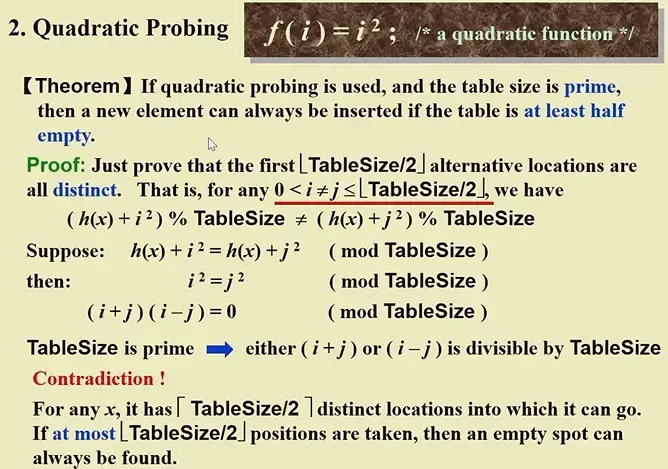

5.2 Quadratic Probing#

\(Theorem\)

If quadratic probing is used, and the table size is prime, then a new element can always be inserted if the table is at least half empty.

Proof
Note
- If the table size is a prime of the form \(4k+3\), then the quadratic probing \(f(i)=\pm i^2\), can probe the entire table.

5.2.1 Find#

Postion Find( ElementType Key, HashTable H )
{
    Position CurrentPos = Hash(Key, H->TableSize);
    int CollisionNum = 0;
    while(H->TheCells[CurrentPos].Info != Empty && H->TheCells[CurrentPos].Element != Key){ // 避免段错误
        CurrentPos += 2 * (++CollisionNum) - 1;
        if(CurrentPos >= H->TableSize) CurrentPos -= H->TableSize; // 可能有问题，如果比tablesize的两倍还大
    }
}

Note
- while 里面用递增来加上每个平方数，使用位运算，效率提高
- 使用 if 来决定是是否减，这样比取模效率高
- 返回了什么？
  - 如果找到了，返回了这个元素的位置
  - 如果没找到，返回了第一个找到的空的待插入的位置

5.2.2 Insert#

void Insert( ElementType Key, HashTable H )
{
    Position Pos = Find(Key, H);
    if(H->TheCells[Pos].Info != Legitimate){ // ok to insert here
        H->TheCells[Pos].Info = Legitimate;
        H->TheCells[Pos].Element = Key; // probably need strcpy
    }
}

Note
- 这里的 info 代表着 cell 的状态
  - Empty，代表空
  - Legitimate，代表被占用
  - 这样方便管理

5.3 Double Hashing#

\(f(i)=i*hash_2(x)\) 第二个哈希函数
- easy to compute
- \(hash_2(x) \not\equiv 0\)
- 确保每个 cell 都能探测到
- \(hash_2(x)=R-(x\%R)\) 是比较好的函数，其中 \(R\) 是小于 TableSize 的质数
Note
- 如果实现的好，那么平均的查找时间基本上等于 random collision resolution strategy
- Quadratic Probing 不需要第二个哈希函数，因此更快更简单

5.4 Other methods#

布谷鸟哈希：建立两个哈希表，鸠占鹊巢
哈希池：如果表里发生冲突，将元素丢到池子里，池子很小，查找时间 \(O(1+n)\)
- 适合冲突发生较少的情况

6 Rehashing#

Build another table that is about twice as big
Scan down the entire original hash table for non-deleted elements
Use a new function to hash those elements into new table
\(T(N)=O(N)\)
Question: When to rehash?
- As soon as the table is half full
- When an insertion fails
- When the table reaches a certain load factor
